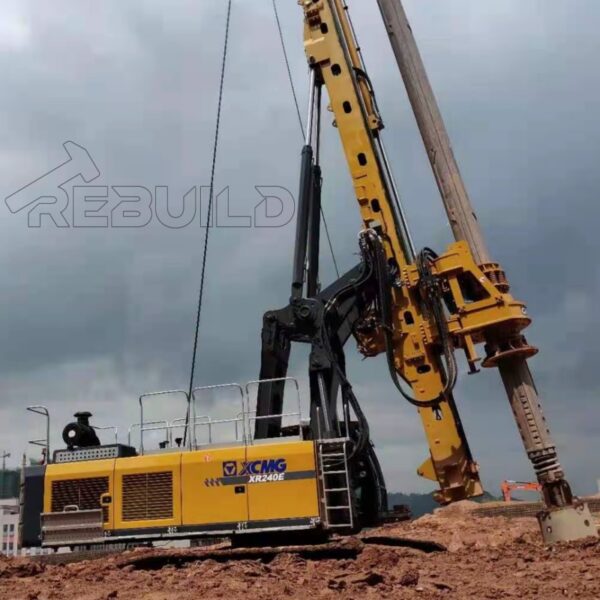

2020 XCMG XR240E Rotary Drilling Rig

Specifications

1. One machine with multiple functions can realize fast switching of functions such as cylinder pressurization, winch pressurization, pipe kneader, long spiral and dual power head to meet the construction requirements of more different projects;
2. Equipped with Isuzu electronic control turbocharging engine, with lower fuel consumption and convenient and fast service;
3. The working performance of power head and main winch is improved by 20% and the operation efficiency is higher;
4. The power head can be equipped with torque multiplier (optional), the driving torque of the casing is up to 360kN • m, and the casing lowering capacity is stronger;
5. Both the main winch and the auxiliary winch adopt single-row rope technology, the service life of the wire rope is 2~4 times longer than that of the multi-layer rope, and the use cost is lower;
6. Double-arm large parallelogram luffing mechanism is adopted, with large support angle, 16% more support range and more stable operation;
7. The main hydraulic system adopts negative flow control technology, with fast response and good control performance;
8. High-power temperature-controlled independent hydraulic oil cooler can meet the construction in high temperature area, and the fan speed can be adjusted with the temperature change to realize energy conservation;
9. The intelligent control system realizes such functions as automatic adjustment and display of perpendicularity of drilling mast, automatic rotation, automatic soil throwing, automatic lifting and pouring of long auger method and pile type display. The bus panel design is adopted to prevent misoperation;
10. The chassis can be equipped with transport outriggers (optional), which can be remotely operated, and the transport transition is more convenient and safe.
