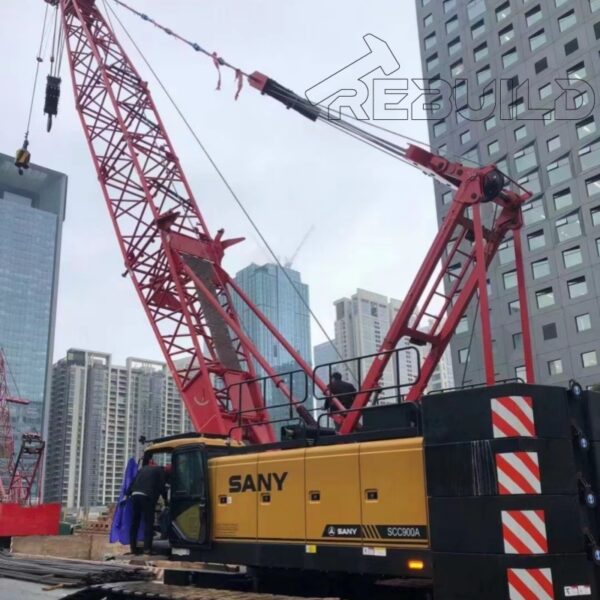

2019 Sany SCC900A Crawler Crane

Specifications

SCC900A is an A-series 90 ton crawler crane developed by Sany Heavy Duty Truck Division, which greatly improves its disassembly and transportation performance, lifting performance, adaptability, operational performance, handling performance, and configuration.
The main arm is 13m-61m long, the auxiliary arm is 9m-18m long, and the longest main arm+auxiliary arm is 52m+18m.
The maximum lifting torque is 360tm, with a single rope lifting capacity of 12t, suitable for heavy-duty operations.
The diameter of the main chord tube is Ø 101.6mm, which is the same as the 100 ton class. It has strong lifting capacity for medium and short arms and is more suitable for foundation construction.
The arm frame comes standard with an open and close cable joint pull rope, making it easy and fast to disassemble and assemble.
Safe and reliable: The slewing bearing adopts 100A SSF1806/60, ensuring safe and reliable operation.
Efficient homework: The maximum hoisting speed reaches 130m/min, which is 8% higher than XGC85, making the homework efficient.
Reliable structure: Adopting a 100A turntable structure, the safety margin is 11% higher.
Powerful: Equipped with an Isuzu 212kW engine, it has low noise and fuel consumption, and provides ample power for on load operations.
Widening chassis: The unfolded width can reach 5100mm, with a track gauge of 4250mm, the same as 100A.
Four wheel belt: 850mm reinforced track shoes, supporting wheel body diameter Ø 290mm, same as 100A, optimized gear teeth and heat treatment, better meshing state, stronger durability.
Transportation performance: It can be transported as a whole with a track frame, and the track frame can be disassembled to meet a transportation width of 3m. Optional vehicle support legs.
